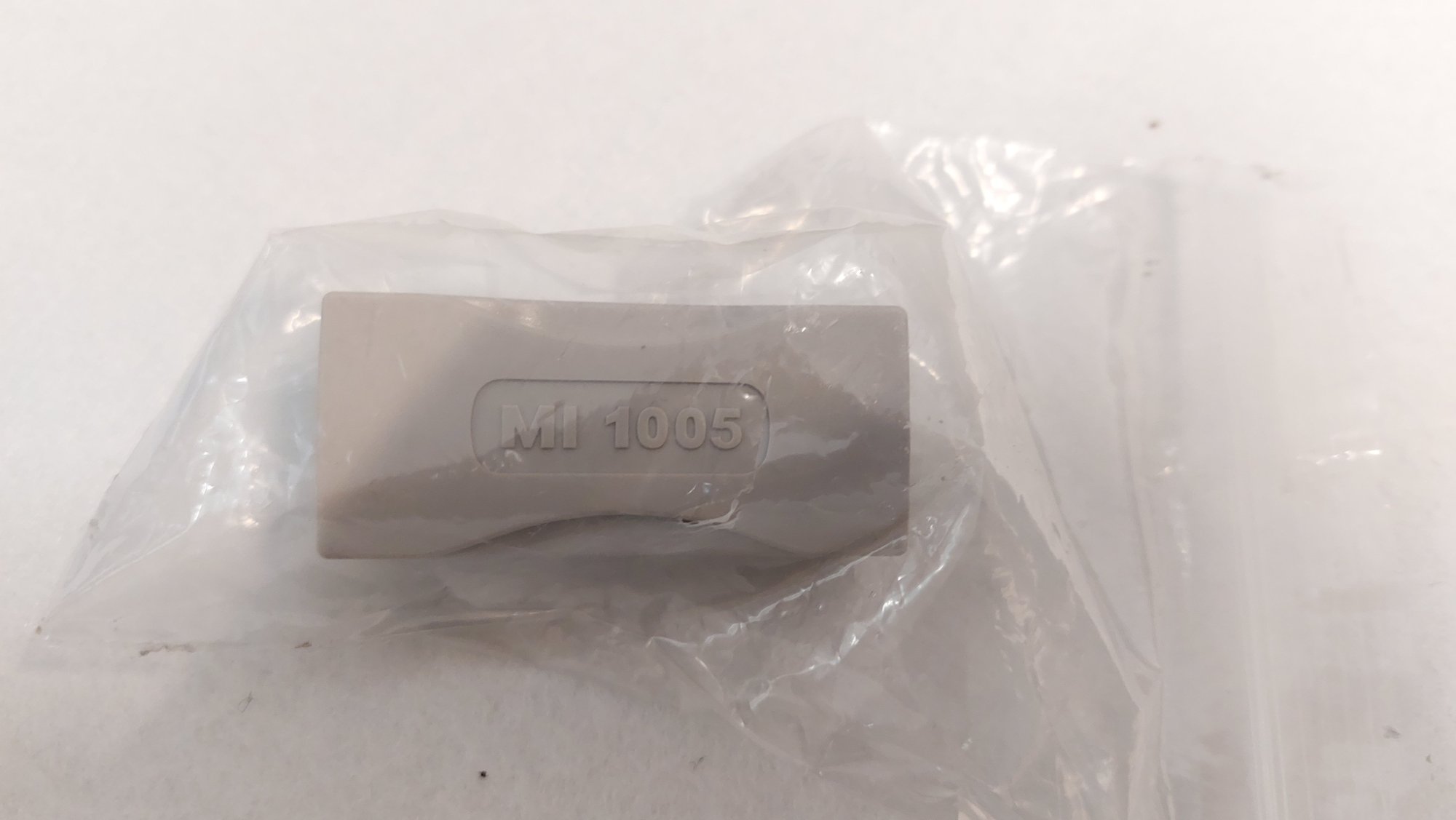

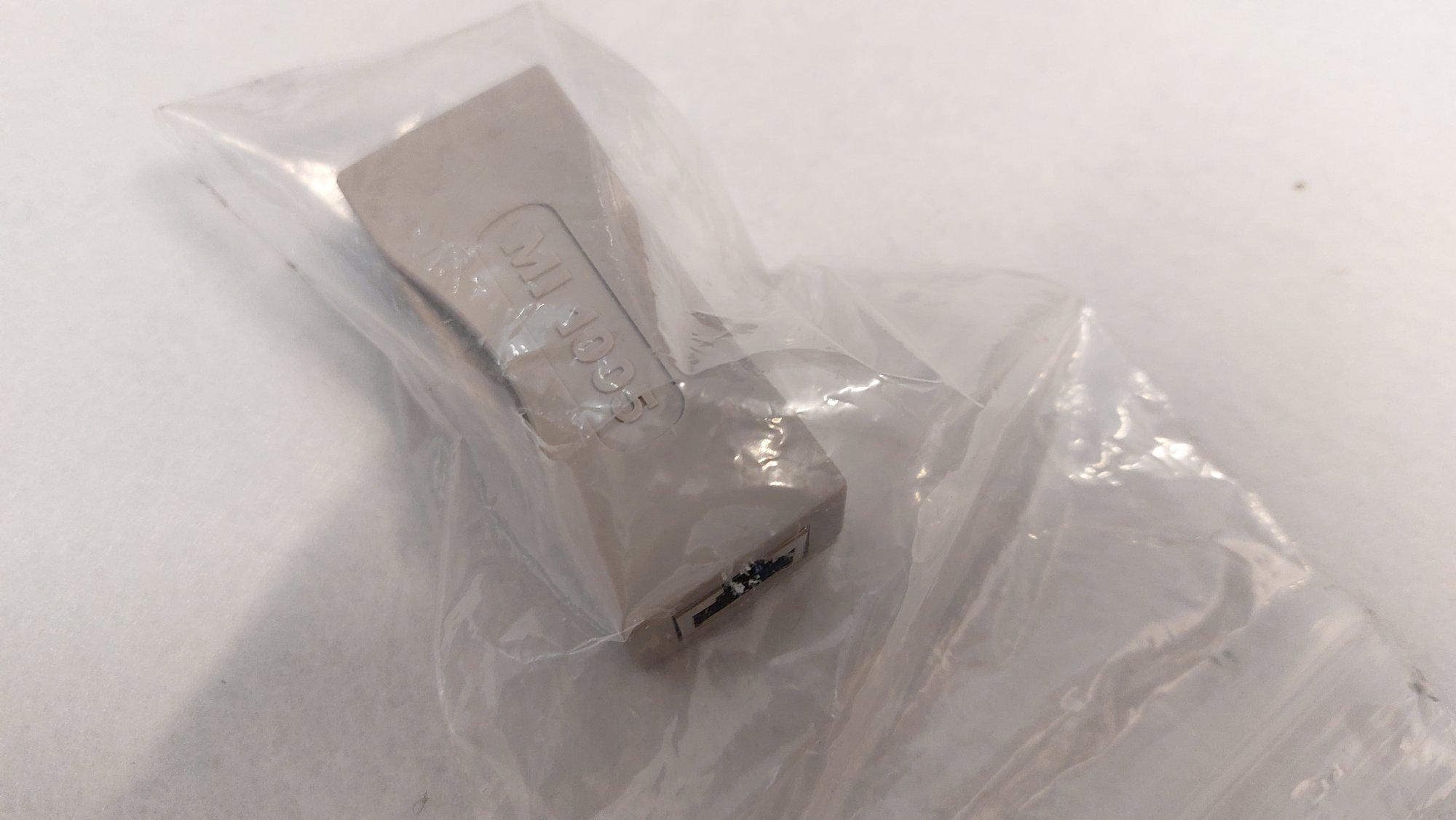

Baaske network isolator MI 1005

Further Information:

The Baaske network isolator MI 1005 is designed for a wide range of applications. There are some write ups about people getting very good results in streaming based audio systems.

https://baaske-medical.com/media/content/downloads/Datasheet_Network_Isolator_MI1005_MI1005E.pdf

With the network isolator MI 1005 a flexible and simple possibility is available to galvanically isolate the network interface between devices immediately.

Dielectric strength 5000 V 50/60 Hz for 1 min.

Data throughput 10/100/1000 MBit/s

Material UL94V-0 / RoHS conform / REACH Product Rating (UL) passive, electronic components, insulation DI (300 V AC / 400 V DC) tested at 5 kV AC

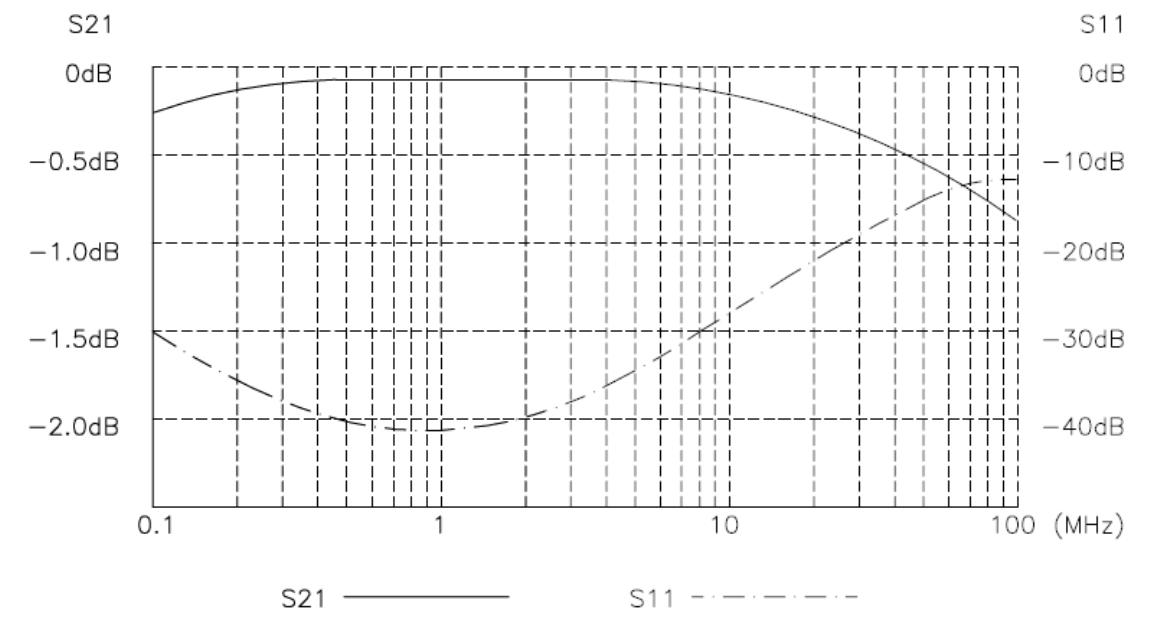

Return loss min. 10 dB

Insertion loss max. 1,1 dB

Relative air humidity 10 % up to 90 %

Isolation Voltage: 5000 V
