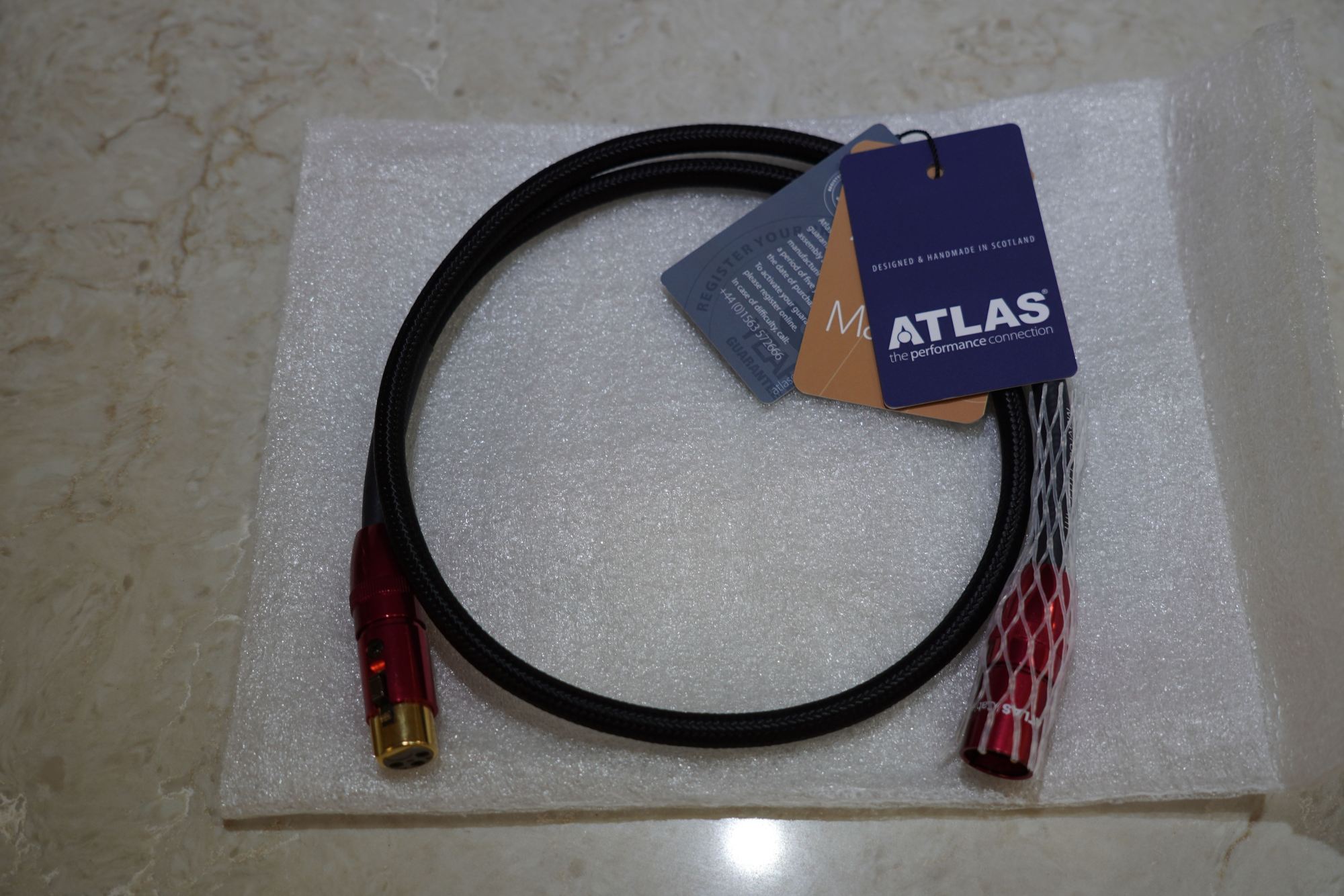

Atlas Mavros AES/EBU Digital Coaxial Cable 1M

Open box for testing, then back in the box. Only used for a few hours. Good as new.

RRP 1070

FEATURES

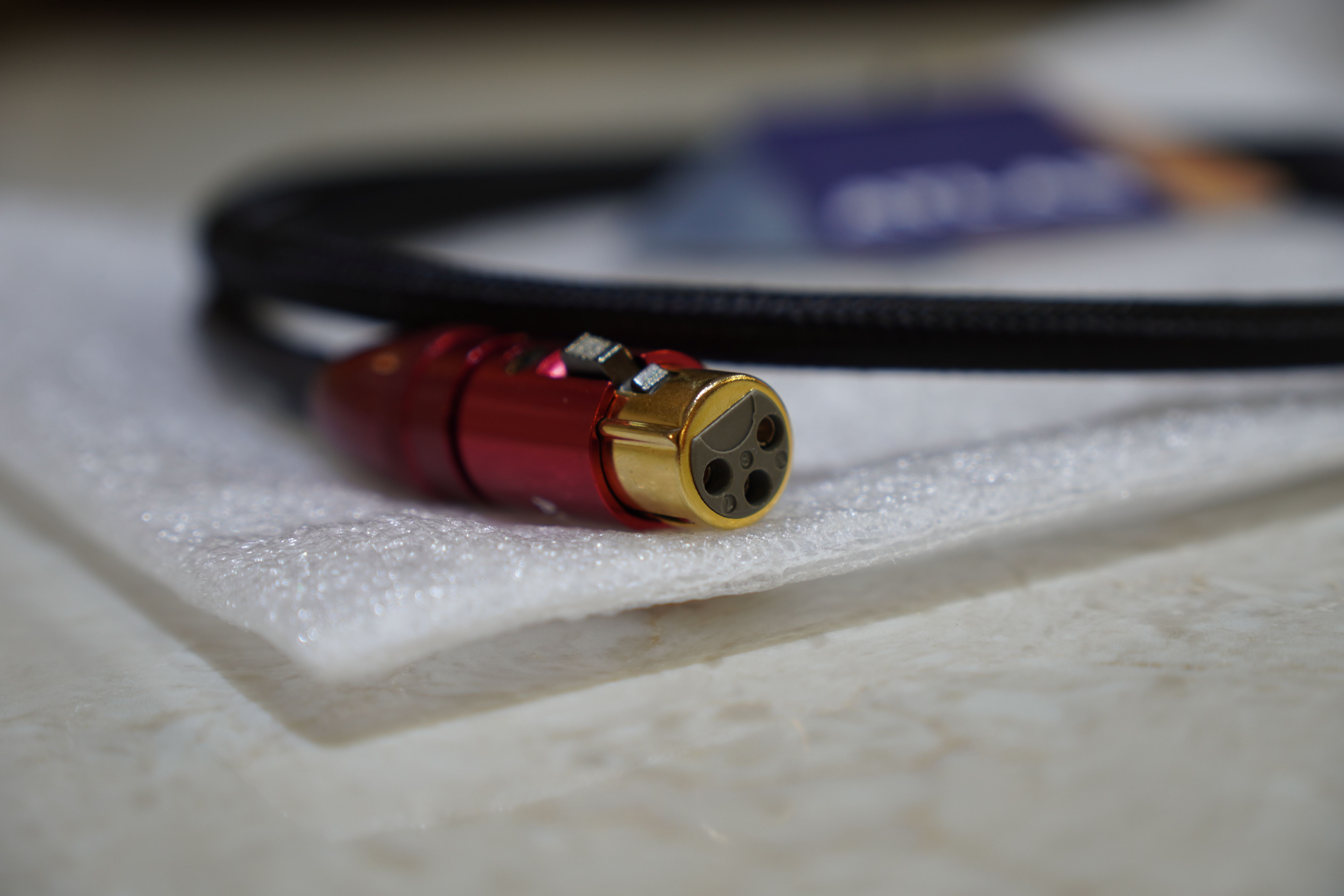

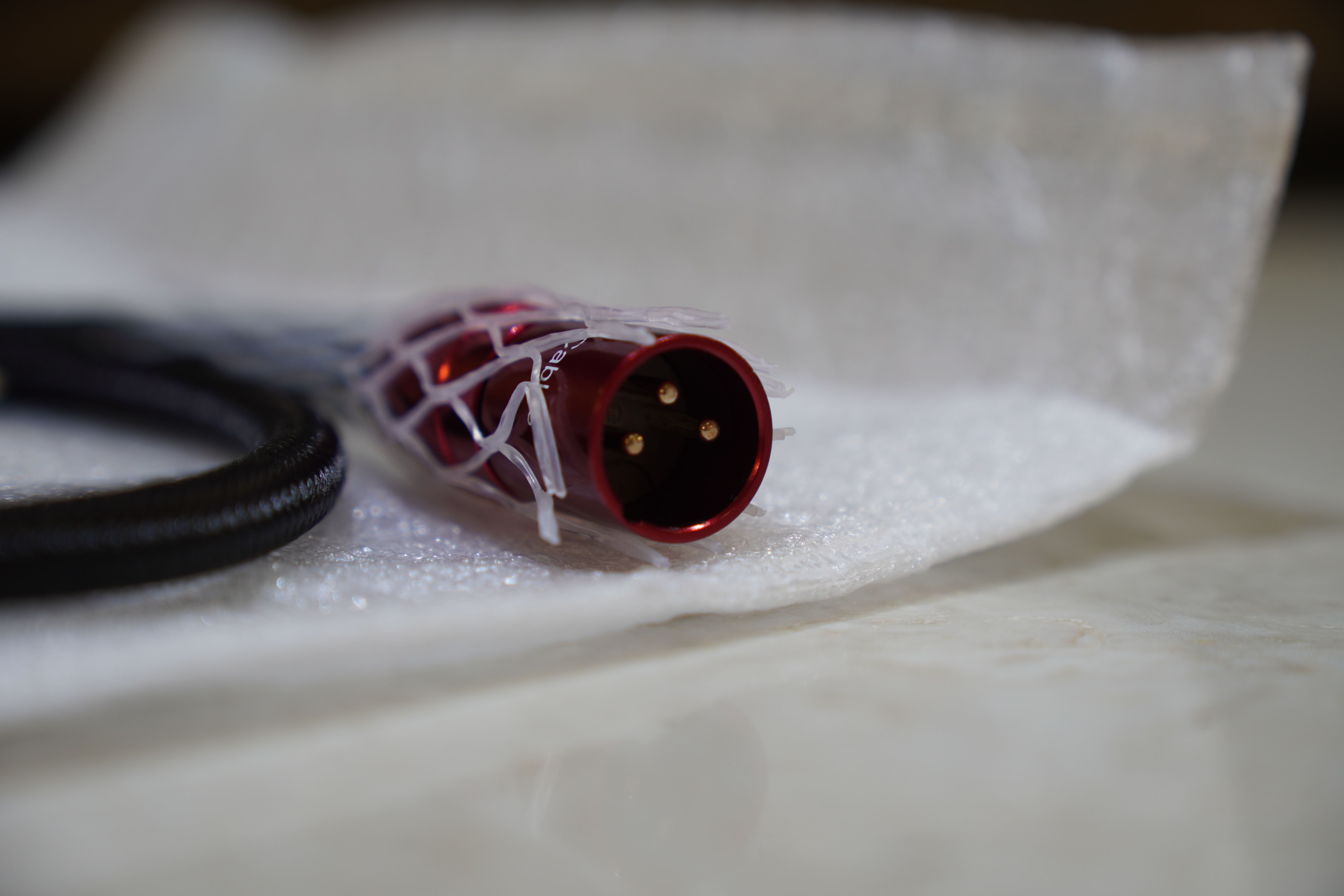

• Atlas XLR Plugs
• Silver Plated OFC Conductors
• PTFE Dielectric
• Symmetrical Construction

DESCRIPTION

The Mavros AES/EBU cable is engineered as a cable with extremely precise transmission and termination standards, incorporating the same microporous PTFE (Teflon™) dielectric insulation as the other Mavros interconnects. The centre conductor is comprised of a monofilament conductor and 18 strands of super pure copper wire insulated by a thin layer of microporous PTFE. This new dielectric behaves almost like the theoretically perfect insulator –free air – with minimal effect upon the signal being transmitted. The previous highest performance insulator, solid PTFE, has a dielectric constant of around 2.1 whilst the new PTFE (Teflon™) foam improves this figure to around 1.5, providing for a 30% greater signal velocity and better signal integrity, particularly in the area of high frequency timing and stability.

SPECIFICATIONS

• CONSTRUCTION
  •  Symmetrical + Screen (19/0.2)
• MATERIAL
  •  Silver Plated OFC
• DIELECTRIC
  •  Microporous PTFE (Teflon™)
• SCREEN
  •  Braid OFC
• CAPACITANCE
  •  41.27 pF/m
• INDUCTANCE
  •  0.728 µH/m
• RESISTANCE
  •  0.0029 Ohms/m
• IMPEDANCE
  •  115.96 Ohm (300kHz)
• OUTSIDE DIAMETER
  •  9.8mm

Edited 5 hours ago by Samiao
Change of price
